1080P AHD Bullet PTZ Security CCTV Camera

Camera:
Adopt the latest South Korean chip EN773E + SONY323 ,It possesses output capability of 1080p/30pfs, This product owns excellent color
restoration due to its high resolution and strong sensitivity, Within unique digital processing technology, It aims at improving imaging
sensitivity; Reduce the imbalance and defection when dealing with optical signals. Equipped with superb low-light-level imaging capacity,
It can easily distinguish the appearance and color of the target object under 0.017 lux environments.

Key Features:
1.Adopt Analog HD technology
2.Full HD 1080P AHD output /1080P TVI output , CVI 1080P output ,CVBS output
3.1/2.8" 2.1MP Progressive Scan CMOS
4.Min illumination color 0.017 Lux
5.In order to improving its imaging capability under different weather such as heavy fog, dust misty rain, haze, steam and water vapor, we
innovatively added defog function to this product.
6.Support HLI ,Intelligent OSD, Super WDR,BLC
7.Support Gain Control, Motion Detection, Privacy Masking, Mirror, Flip and Sharpness etc
8.Support OSD Menu, offering convenient and simple operation
9.4X( 2.8-12mm) Zoom Auto Focal Lens
10.4EA high power arry Led-Special IR LED, up to 80m IR distance
11.Metal housing

Model Name and
Description 2.0MP 4 IN 1 Color IR PTZ Bullet Camera
ASHD400-004-020
Camera Media Processor EN773E + IMX323
Image Sensor 1/2.8" 2.1MP Progressive Scan CMOS (SONY IMX322)
Effective Pixels 1984(H)*1105(V)
Video Frame Rate 1080p@25fps (PAL)/1080p@30fps(NTSC)
Signal System PAL/NTSC
Min. Illumination Color:1.0 lux ,BW: 0.5 lux , Color:DSS:0.017 lux, BW DSS:0.0008 lux
Shutter Time AUTO/MANUAL(1/50\60 ~ 1/30,000 sec)
Lens 4X( 2.8-12mm) Zoom Auto Focal Lens
Day& Night Auto,dual IR-cut filter
IR Distance 30m
S/N Ratio More than 50Db(AGC off)
Video Output 1080P AHD output /1080P TVI output , CVI 1080P output ,CVBS output
Synchronization Internal Synchronization
Menu ACE/DWDR DWDR
Shading Off/On
BLC Off/BLC
HLC Off/Hlc
Auto Gain 0‐20 steps
White Balance Auto/Auto ext/Preset/Manual
Defog Off/On
Noise Reduction Off/Low/Middle/High
Private Mask 16Masks
Motion Detection Off/on
Language Chinese/English/German/French/Italian/Spanish/polish/Russian/Portuguese/Turkish
Function Mirror,H‐V‐REV,Sharpness,Digital Zoom
PTZ CPU Type 32 bit ARM CPU
Pan Range 0° ~25°

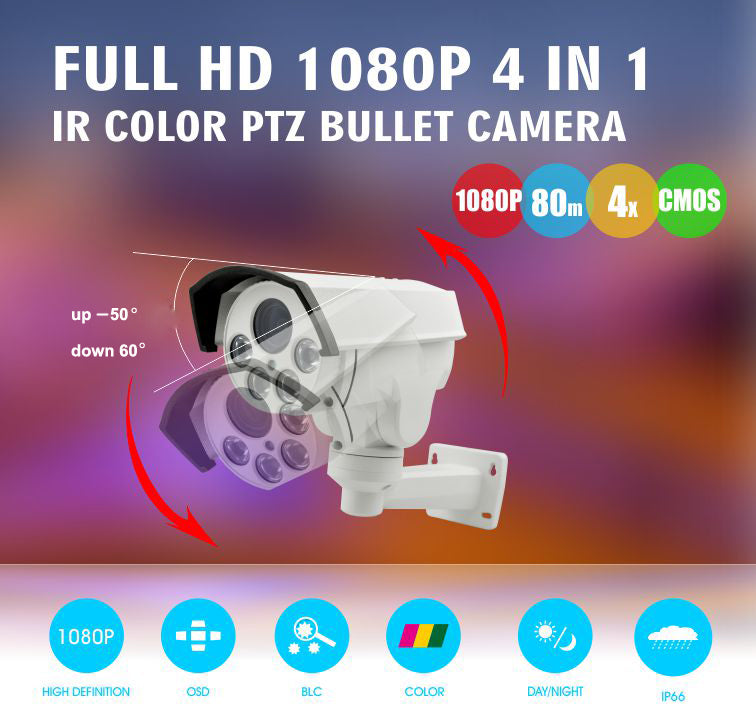

Tilt Range UP -50° ~Down 60°
Manual Control Speed 12°/s
Preset points 220
Tour 4
Pattern group 1 Programmable(Pan/Tilt/Zoom )
Intelligent power off real time memory automatic save functions setting ,automatic wake up tour function
Manual continued Auto Scan Non-limited position of manual continued Auto scan
General Parameters Power Supply DC12V
Operation Temperature -20℃ - +50℃
Operation Humidity Less than 95%RH(no condensation)
Weather Proof Rating IP66
Installation Equipped With Bracket
Dimension 153*187*93MM
Weight 1.2kg

Package:
1x Camera
