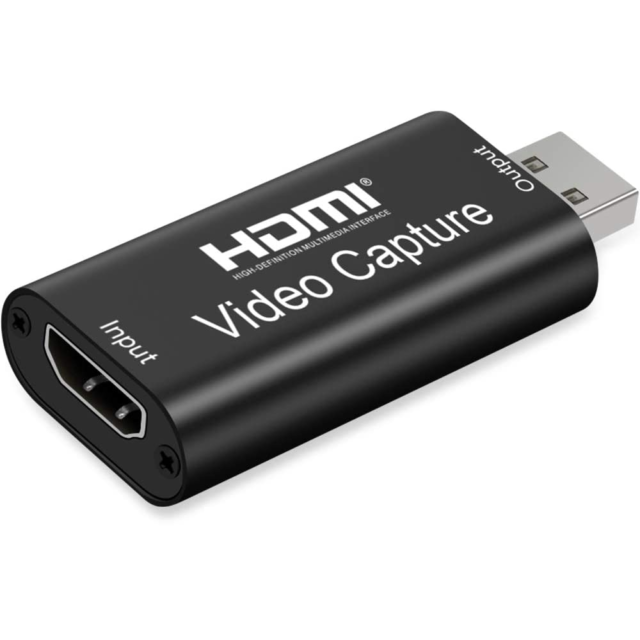

HDMI to USB 2.0 Portable Capture Card

HDMI to USB 2.0 Portable Capture Card

Regular price $20.00 AUD
Regular price Sale price $20.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

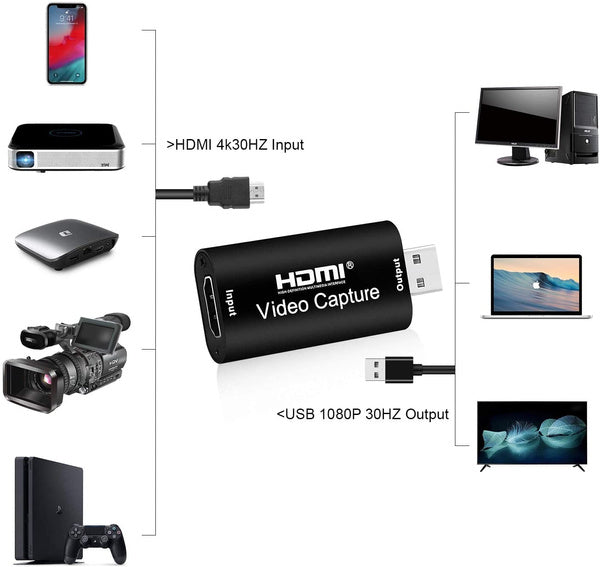

This USB 2.0 capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.
  • Support 8/10/12 bit color depth;
  • When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution);
  • Support most acquisition software, such as VLCOBS, Amcap, etc .;
  • Support Windows, Android and MacOS;
  • Comply with USB video UVC specifications;
  • Conforms to USB audio UAC specifications;
  • No external power supply is required, so it is compact and easy to carry.


Specification:
  • HDMI Input Resolution: 4K / 1440P / 1080P / 1080i / 720P / 480P / 1280x1024 / 1280x960 / 1024x768 / 800x600 / 640x480
  • Output Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 / 1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x1080
  • Output Frame Rate: 25/29.97/30
  • Video Input Format: 8 / 10 / 12-bit Deep Color
  • Video Output Mode: YUV / JPEG
  • Support Audio Format: L-PCM
  • Support AWG26 HDMI Standard Cable: input ≤15 meters, AWG26 HDMI standard cable.
  • Maximum Working Current: 0.4A / 5VDC
  • Operating temperature range: (-10 to + 55 ℃)
  • Dimension (L x W x H): 64×28×13 (mm)
  • Weight: 21.4g



Package Includes
  • 1 x USB 2.0 Capture Card
