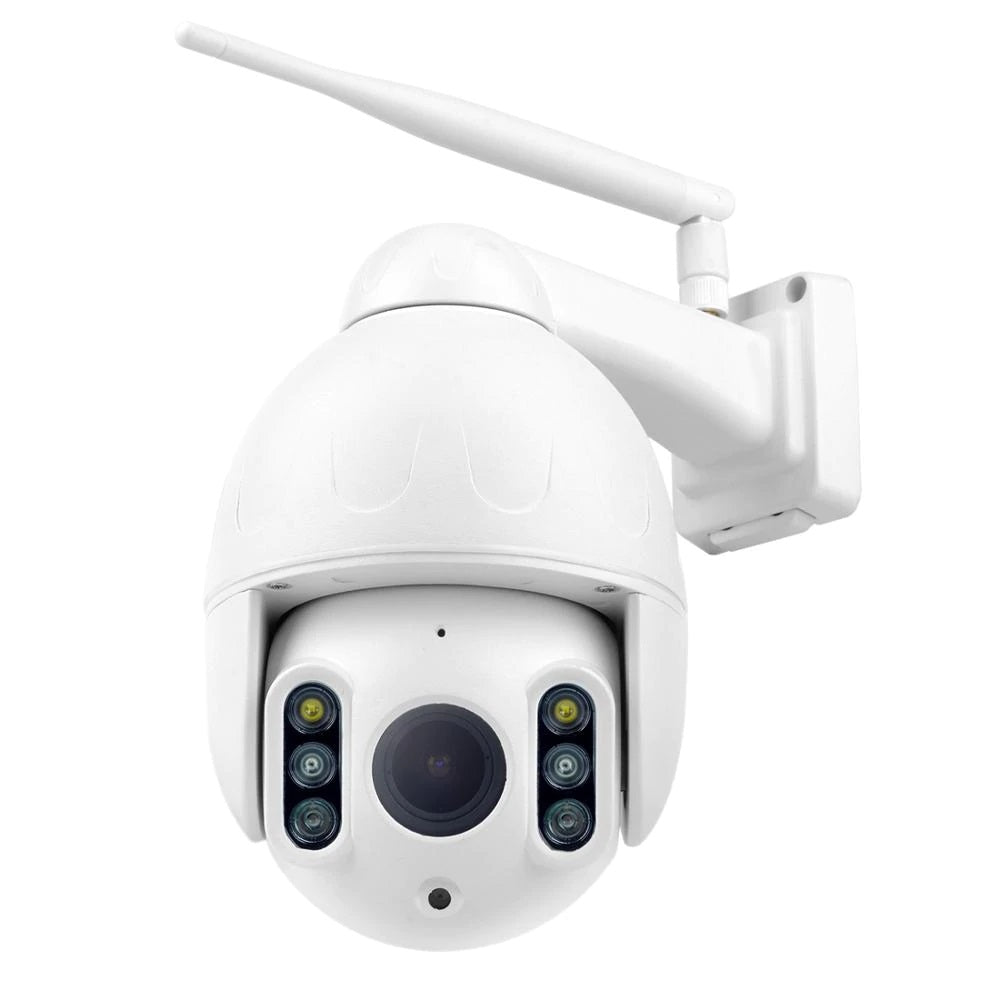

1080p PTZ WiFi Outdoor Security CCTV Camera

Video Sensor
2.0 megapixels 1/4” progressive CMOS. Image Compression: H.264

Processor
GK7102S+SC2232. 1080P Full-HD

Resolution
First steam: 1080P-(1920x1080); Second stream: 720P-(1280x720).

P2P (Free)
P2P QR code scanning to view on iOS iPhone, Android smartphone. App: YSee or SAP HD.

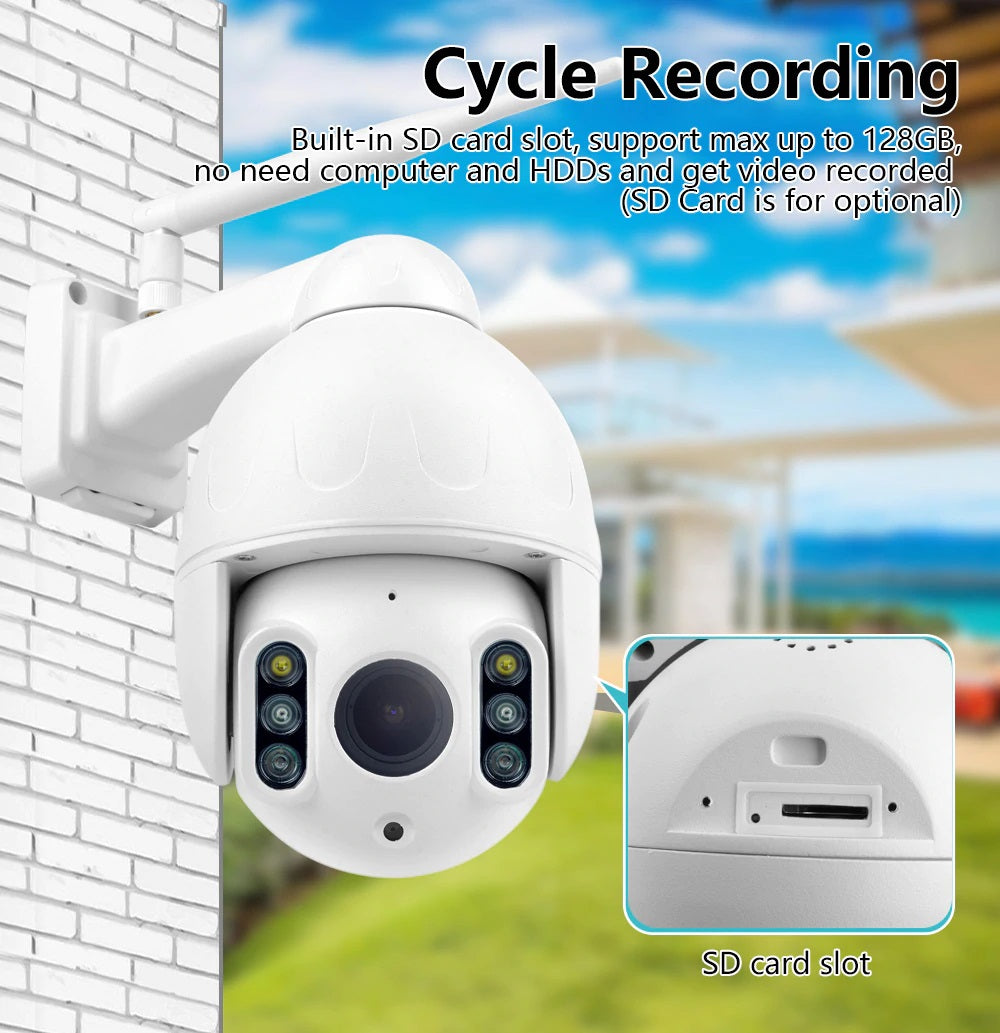

TF Card Record
Support max 128G TF SD card recording, video playback, download video in mobile

Lens Type
Lens: 2.8mm--12mm, 4x optical zoom, 4x digital zoom, built-in IR-Cut

Zoom
16x mix zoom (4x optical zoom mix 4x digital zoom)

Pan/Tilt
Support 8 preset position

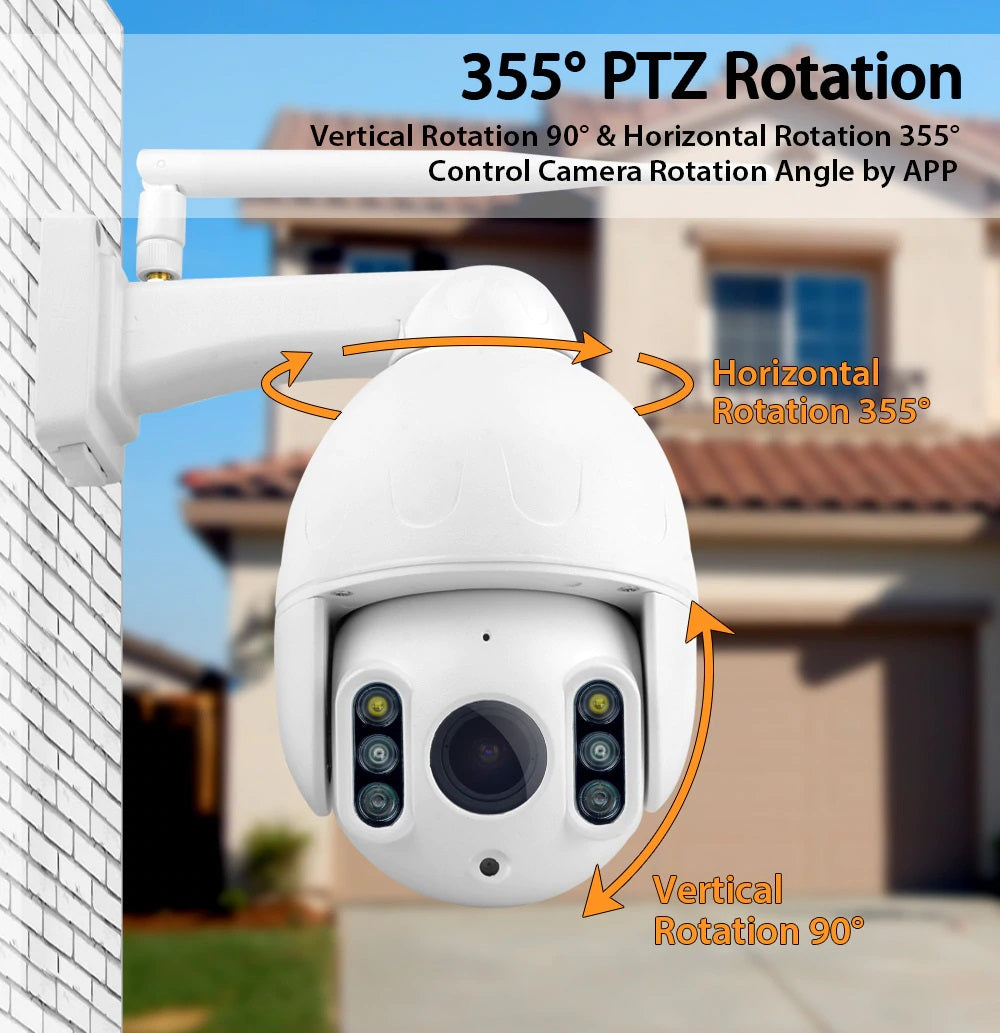

Rotation Angle
Horizontal direction: 355 degrees ,Vertical direction: 90 degrees

Rotation Speed
Horizontal direction: 5-30 degrees ,Vertical direction: 5-50 degrees

Face Detection
Support face detection (only support in FHD mode), Auto tracking

Motion Detection
Support push alert notifications, Snapshot and record to TF card

Two Way Audio
Built-in Microphone and Speaker, Support echo cancellation and sound adjustment

Night Vision
50 meters (dual light source). Infrared LED: 4 infrared + 2 white light

Network Interface
RJ-45 10/100Mb adaptive Ethernet interface

Wireless
WIFI 2.4GHz 802.11 b/g/n

OSD
Support camera name, date and time information show on image

Onvif
Support Onvif protocol

Power Supply
DC-12V/1A

Product Type
Metal speed ball machine. Indoor / outdoor use, waterproof IP66

Working Humidity
95% RH. Operating Temperature: –20～70℃

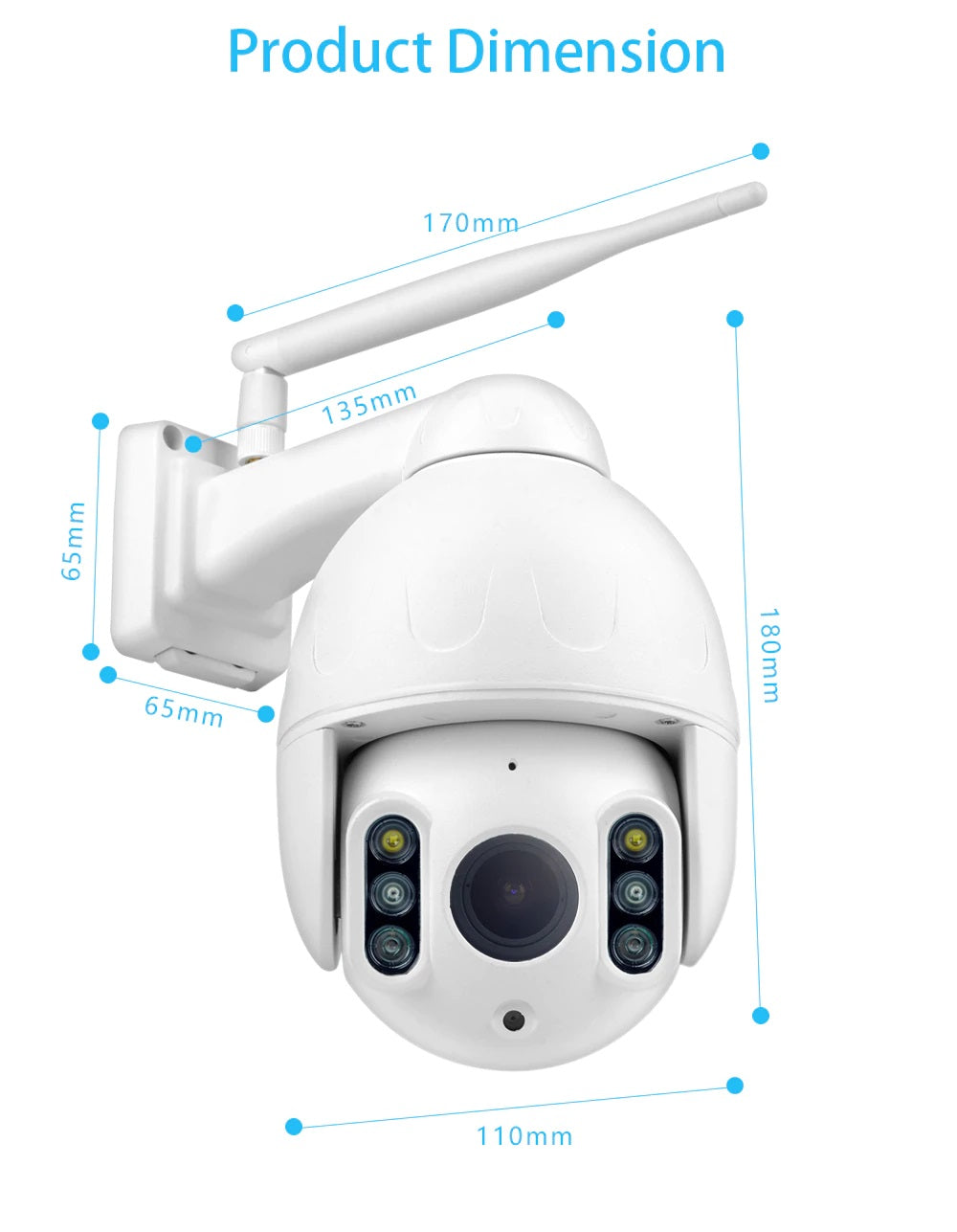

Size
Item size: (length*width*height:18x13x11cm). Packing size: (20cmx20cmx14cm)

Weight
Net weight: 0.9kg Gross weight: 1.3kg (Note: subject to the actual product)

Package Include
IP Camera, Power adapter, Antenna, Manual, Mounting screws

Certification
CE, FCC, RoHS



Important tips:

(a) WiFi name(SSID) and Password should not contain any special character, like: ~, !, @, #, $, %... password is not longer than 20 characters.
(b) It support WiFi 2.4GHz only(Not 5GHz). If router supports the both, please close 5GHz. Set WPA2-PSK(AES)/ WPA-PSK(AES) as Encryption.
(c) Be sure to Reset camera when set up WiFi connect.
