Heavy Duty Coil Spring Compressor Suspension Spring Bearing 1200KG Capacity YS162

Heavy-Duty Coil Spring Compressor Tool – Strut Clamp Kit with Safety Bracket

Product Description:
The Heavy-Duty Coil Spring Compressor Tool is engineered for the safe and efficient compression of coil springs during strut, shock absorber, and spring set replacements or repairs. Designed for professional automotive applications, this kit features a safety bracket and reinforced components to handle high-tension loads with superior stability and reliability.

The adjustable telescopic safety bracket minimizes tool deflection, bending, and warping under load, ensuring parallel compression and preventing accidental spring release. The anti-slip hooked jaws provide an extended contact area for enhanced grip and stability, while the metal locking ring securely locks the jaws in place to prevent slippage during operation.

A knurled texture on the spindle enhances grip and control, and the hexagonal nut allows smooth, precise tightening using a 19mm socket or spanner. The tool accommodates springs with diameters ranging from 2" to 11" (51–280mm) and fits coil diameters between 8.5" to 12" (216–305mm), supporting up to 2200 lbs (1000 kg) per pair.

Constructed from heat-treated 45# carbon steel with a premium galvanized finish, this spring compressor ensures maximum durability, corrosion resistance, and long-lasting performance.

Key Features:

• Telescopic Safety Bracket: Provides additional protection and prevents accidental spring release.
• Anti-Slip Hooked Jaws: Enhances grip and stability with a large contact area.
• Metal Locking Ring: Securely locks jaws to prevent slippage under high tension.
• Knurled Spindle Design: Ensures superior grip and control during operation.
• Adjustable Jaw Capacity: Fits a wide range of spring sizes (2"–11" / 51–280mm).
• High Load Capacity: Withstands up to 2200 lbs (1000 kg) per pair.
• Durable Construction: Made from heat-treated 45# carbon steel with a corrosion-resistant galvanized finish.

Specifications:

• Material: 45# Carbon Steel
• Maximum Load Capacity: 1000 Kg / 2200 lbs per pair

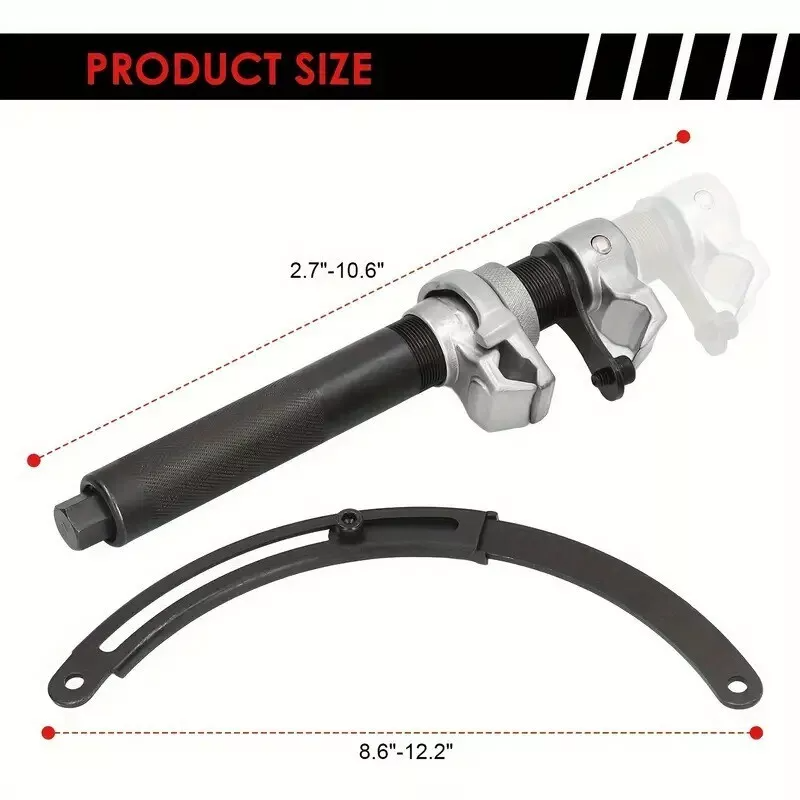

• Jaw Opening Range: 2"–11" (51–280mm)
• Bracket Length: 8.5"–12" (216–305mm)
• Compatible Tools: 19mm socket or spanner

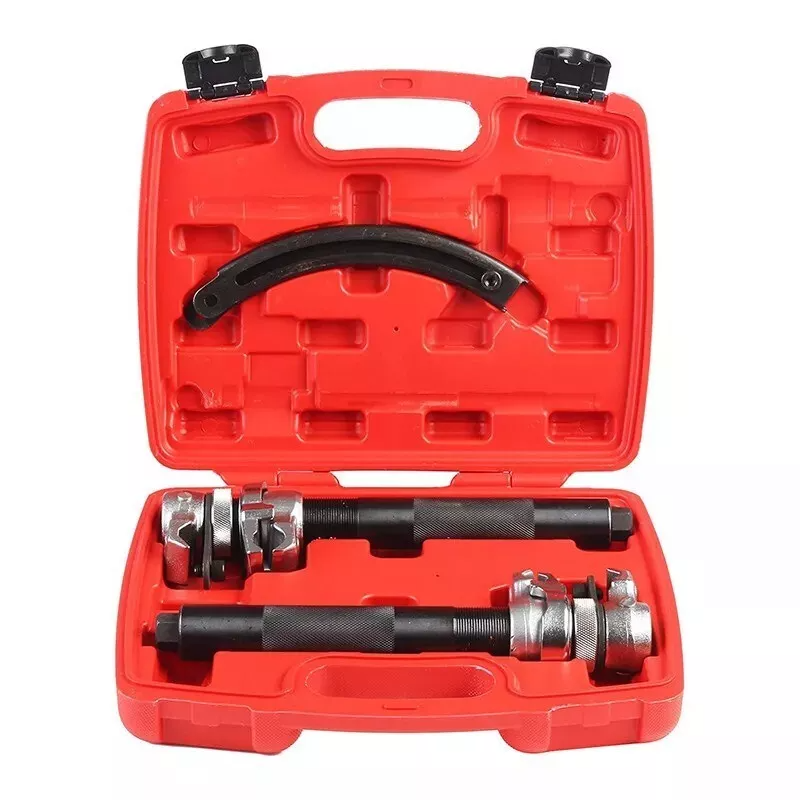

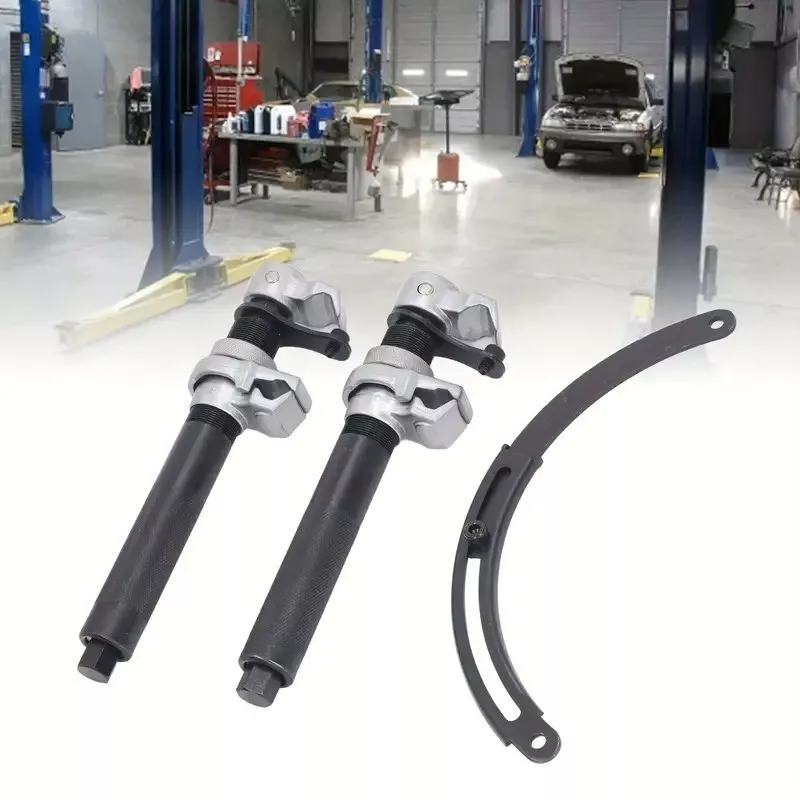

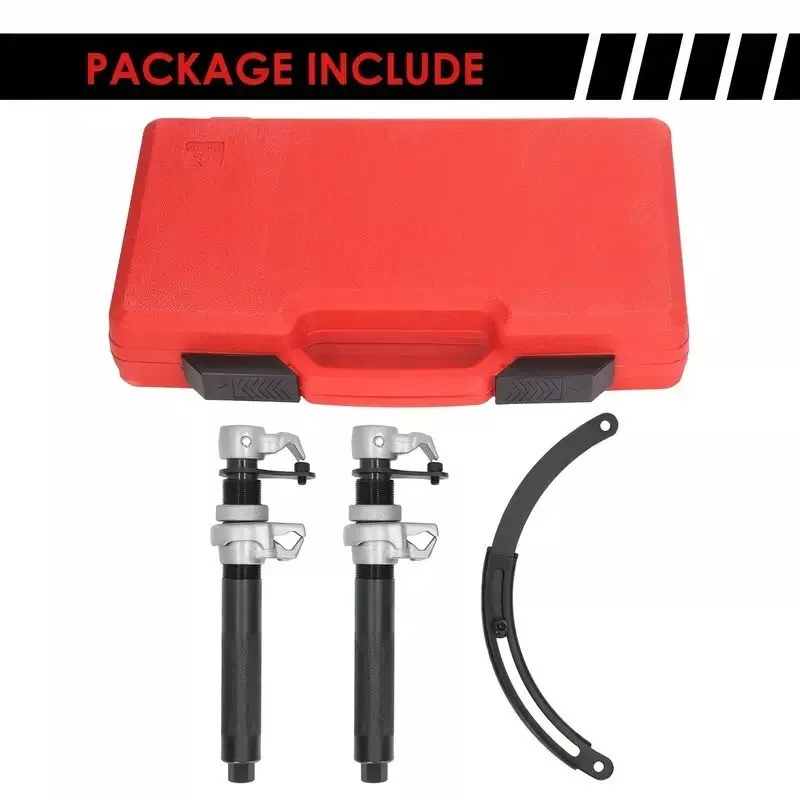

Package Includes:

• 2 × Coil Spring Compressors
• 1 × Safety Fixed Bracket

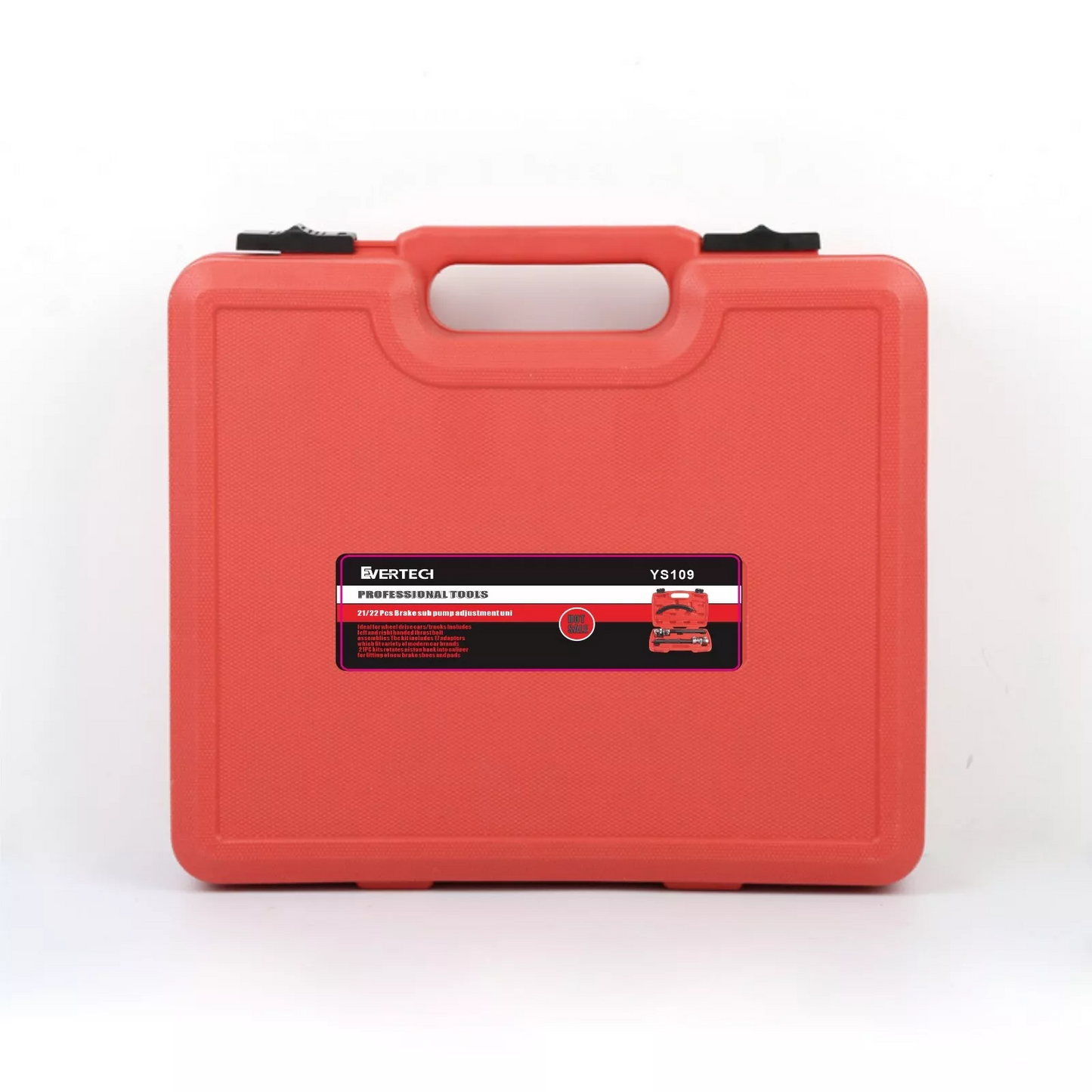

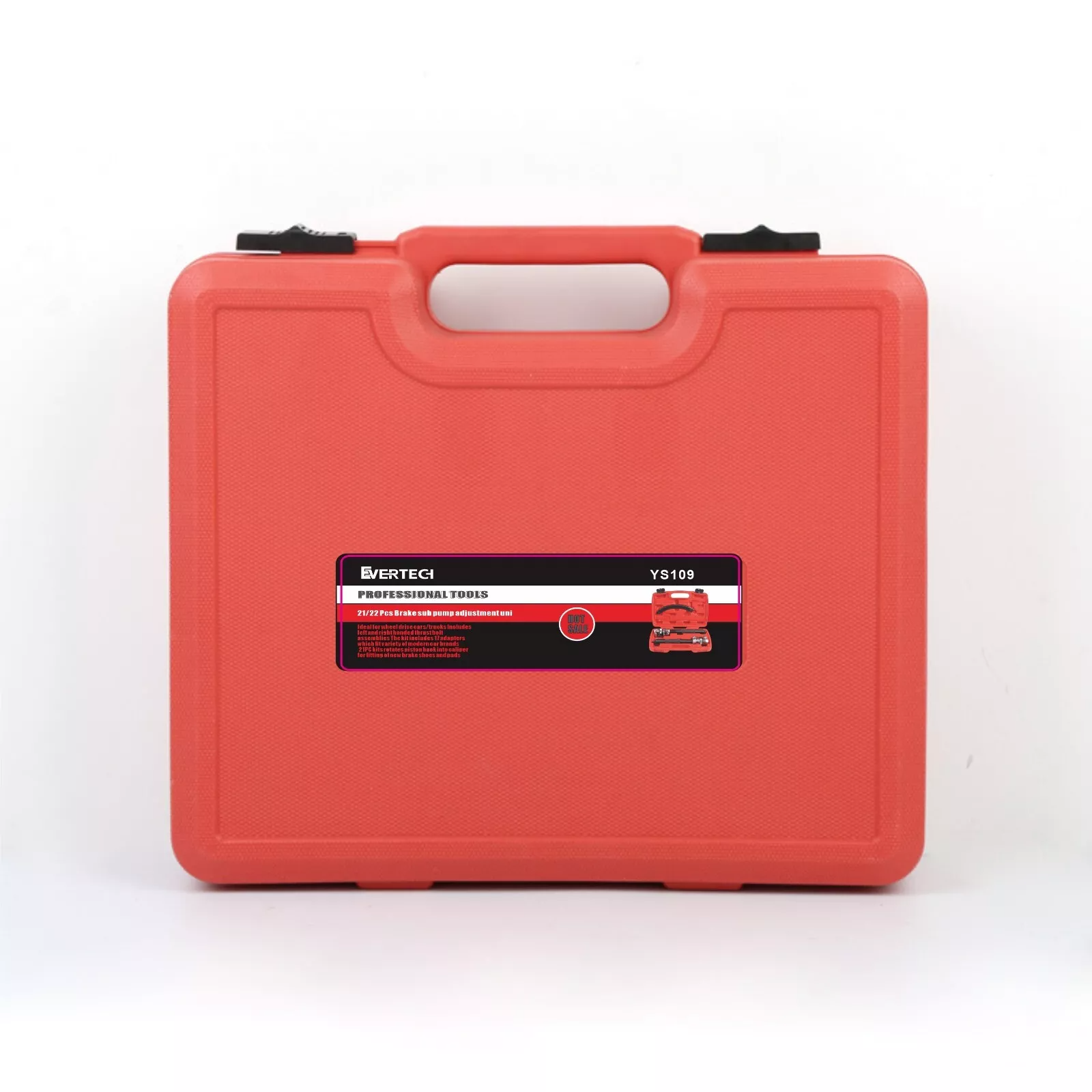

• Packaging: Durable Blow Moulded Case (BMC)

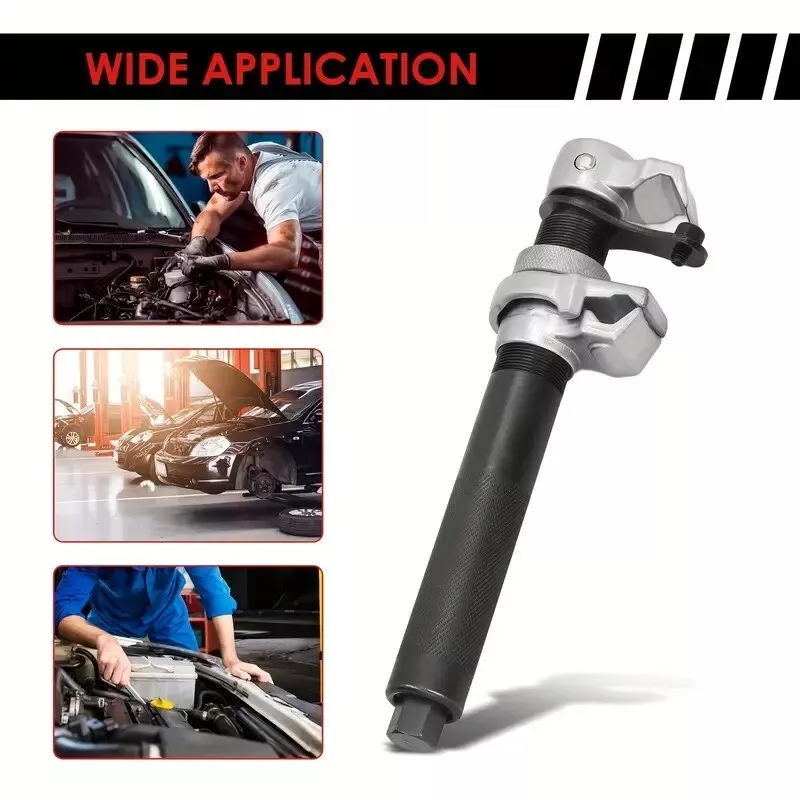

Application:
Suitable for a wide range of vehicles, including trucks and large sedans. Ideal for professional mechanics and automotive workshops.

Installation and Usage Instructions:

1. Fully extend the threaded rod and attach the bracket jaws securely onto the spring.
2. Adjust the safety bracket and tighten the locking nut to secure it in place.
3. Insert the safety guard into the dowels on the fork, keeping the middle nut loose to adjust the guard length around the spring.
4. Use a hand ratchet or wrench (19mm socket) to gradually and evenly compress the spring by turning the hex socket.

Important Notices:

• Manual Operation Only: Do not use power tools, air tools, or impact wrenches.
• Lubrication Required: Keep compressor spindles lubricated before use to prevent damage.
• Balanced Compression: Compress the spring evenly on both sides to maintain balance.
• Safety First: Avoid over-compressing the spring or compressing it until the coils touch.

Warnings:

1. Confirm the outer diameter and load capacity of the spring before use. Ensure the compressor is suitable for the task.
2. Always check jaw alignment and ensure proper engagement with the spring before compression.
3. Avoid excessive compression that could cause tool damage or spring deformation.
4. Maintain alignment of jaws and the compressor body throughout the process.
5. Keep out of reach of children and untrained personnel.

Professional-Grade Performance:
Engineered for safety, durability, and precision, the Heavy-Duty Coil Spring Compressor Tool is the perfect addition to any professional automotive repair kit, delivering reliability for demanding applications
