MC4 Pair Y Branch Connectors Solar Cable Mains Power cable

Regular price $15.00 $0.00 Unit price per
Tax included. Shipping calculated at checkout.
Product Description:

This Y Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications
It also has the feature of waterproof, so you don't worry about the rain
Double seal rings for better waterproof effect
Compatible with PV cables with different insulation diameters
It can be used in harsh environment
With excellent aging resistance and UV endurance
Created seal, design of dust proof
Load capability with big current and high voltage

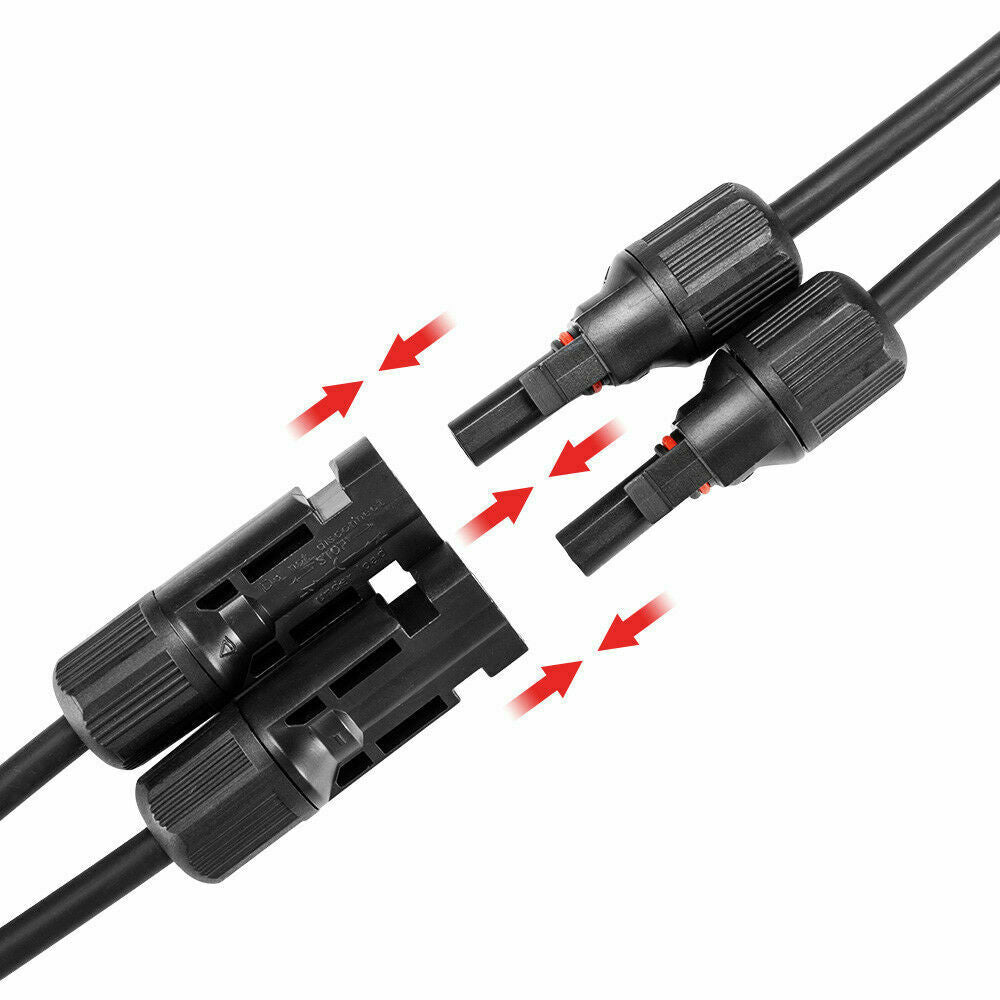

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
Strong pulling force capability
Resistance of extra high & low temperature and fireproof
Lower contact resistance

Specification:

Insulation material: PPO
Rated current: 20-30A
Rated voltage: 1000V(TUV)&600V(UL)
Test voltage: 6kV(50Hz,lmin)
Typical contact resistance: ≤5mΩ
Contact material: Copper, silver plated
Degree of protection: IP67
Safety degree: ll
Flame class: UL94-V0
Material RTl: 110℃
Ambient temperature range: -40℃ until+85℃
Insertion force: ≤50N
Withdrawal force: ≥ 50N

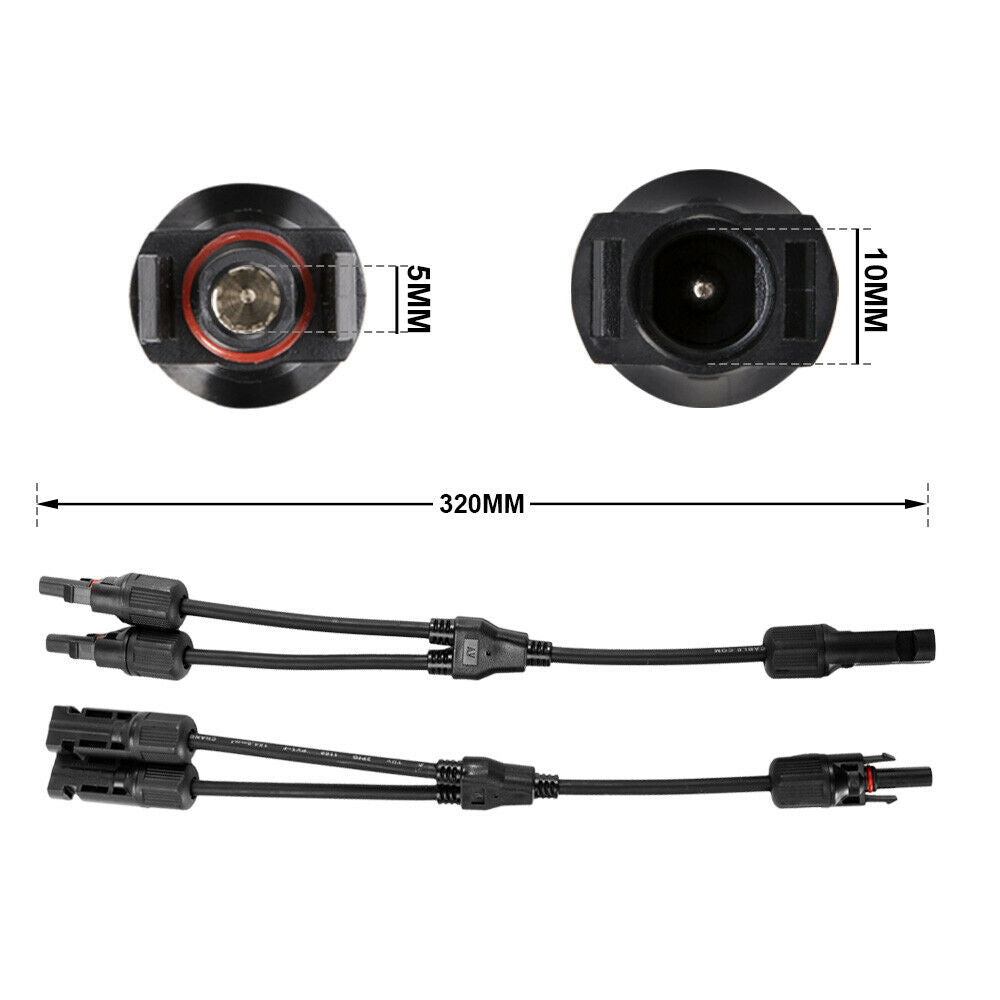

Cable length: 29.5cm

Package Include:

1 Pairs Y Branch Connector
