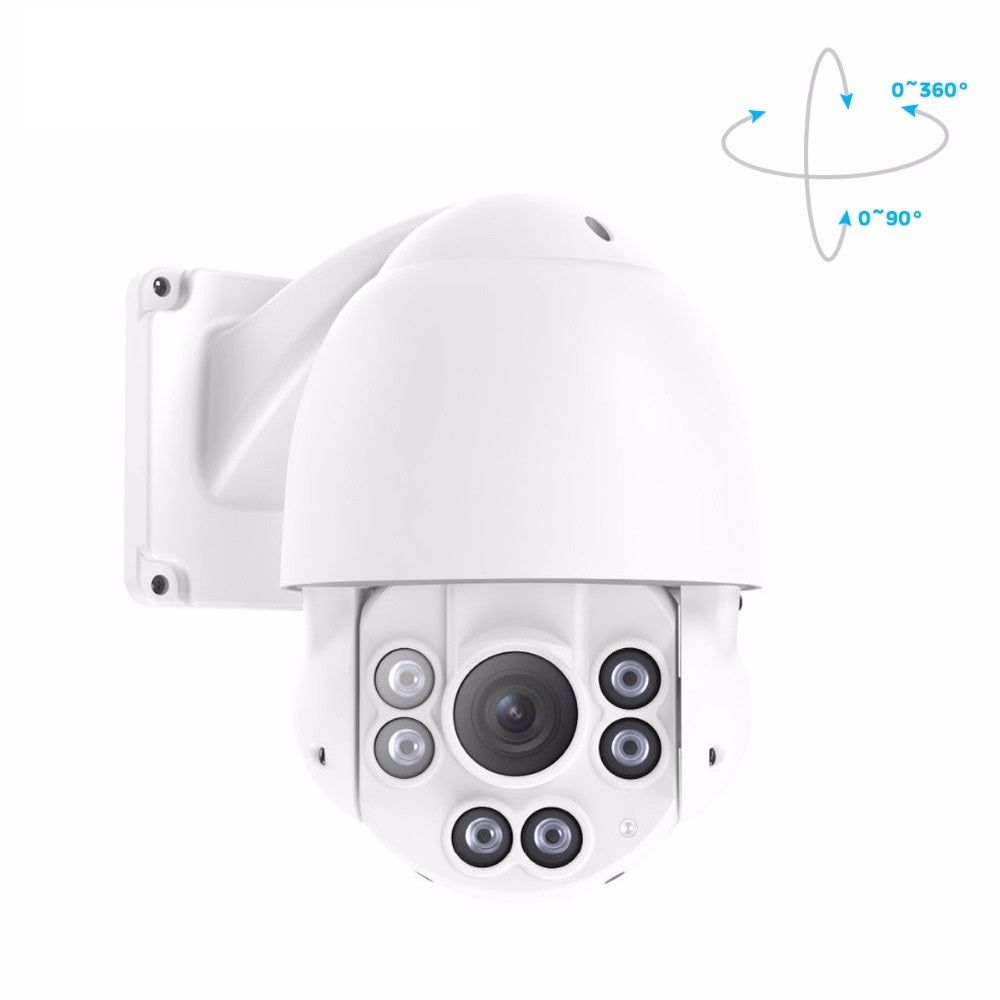

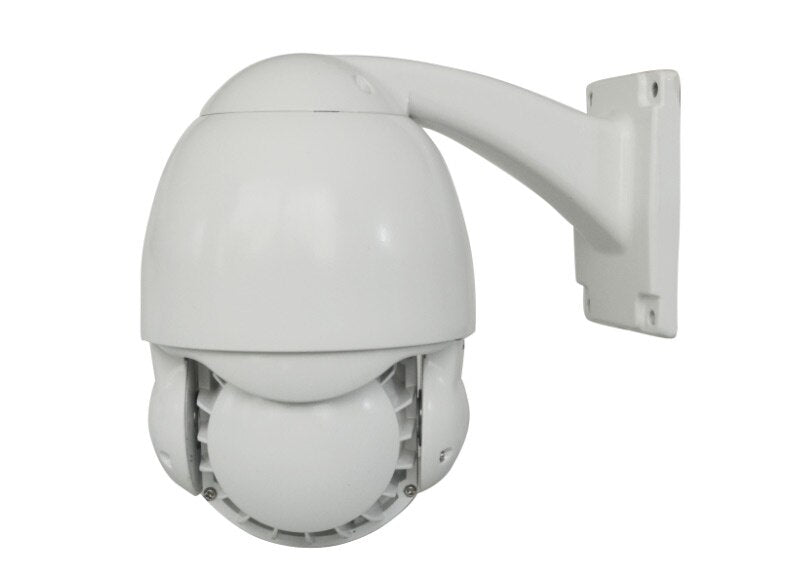

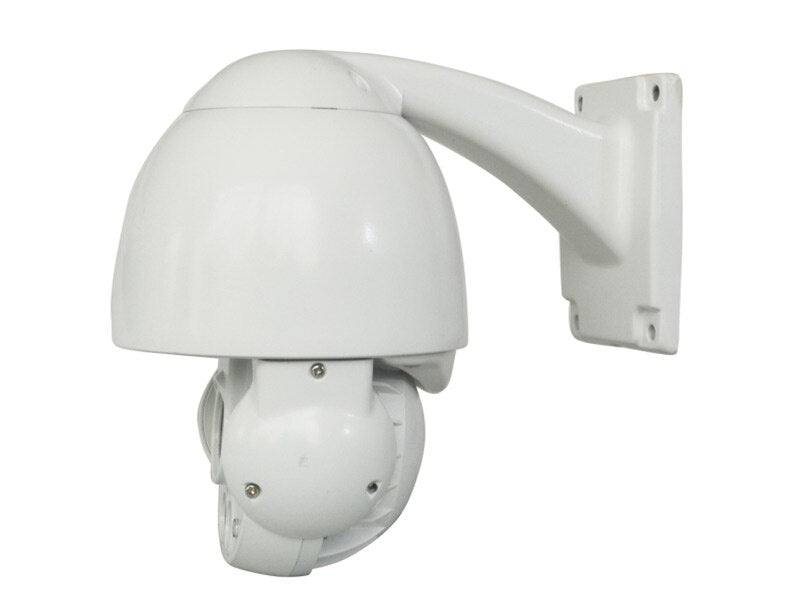

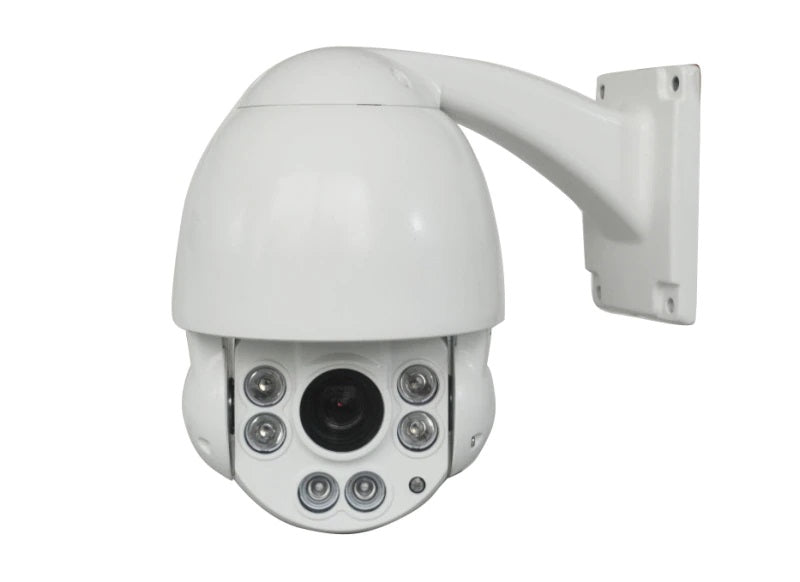

1080p AHD PTZ 10x Dome Camera

  • $45000


Features;

Keep original analog system
Real time transmission,lossless video
High definition 1080P 10X Zoom
Long distance transmission up to 300 meters
OSD menu available / IR distance 50M

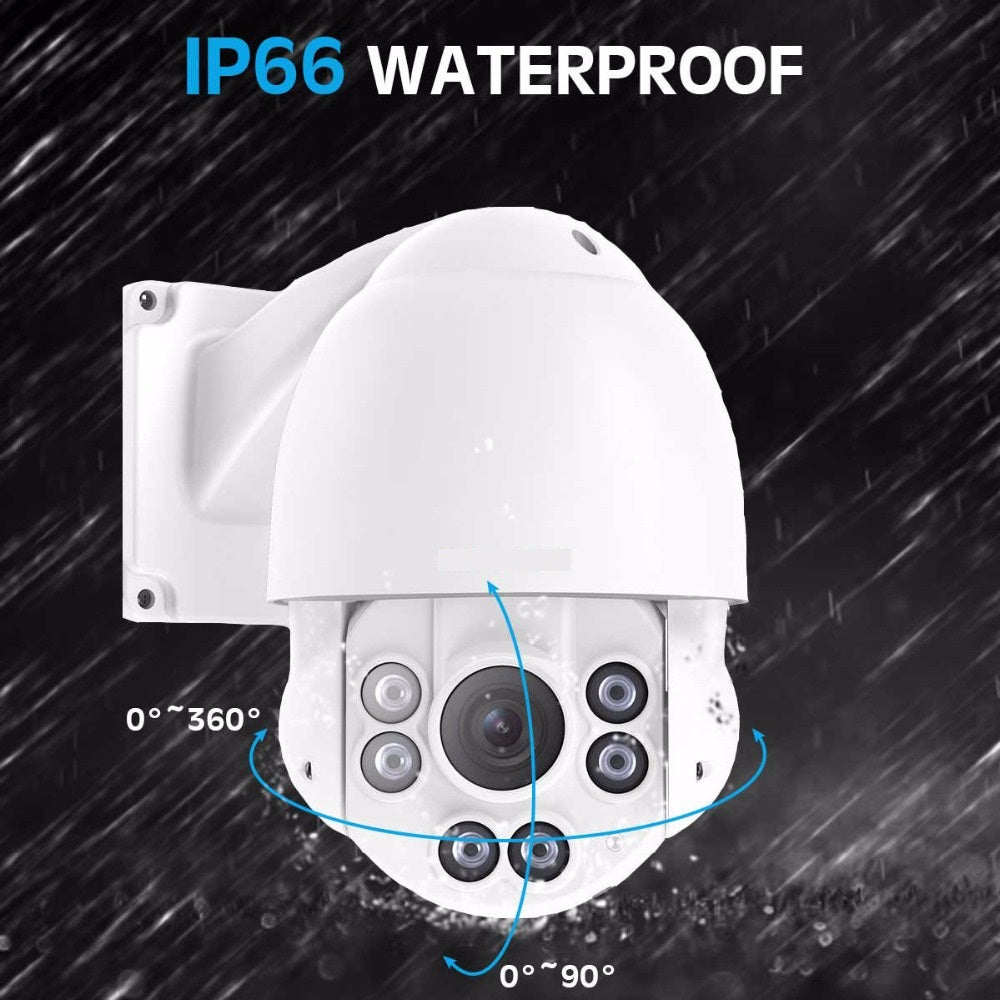

4.5" Total Metal body construction, IP66 rate protection
IR illumination & power consumption is variable dependant on zoom factor
Support coaxial control (UTC), no need to use 485
Specification;

Camera;

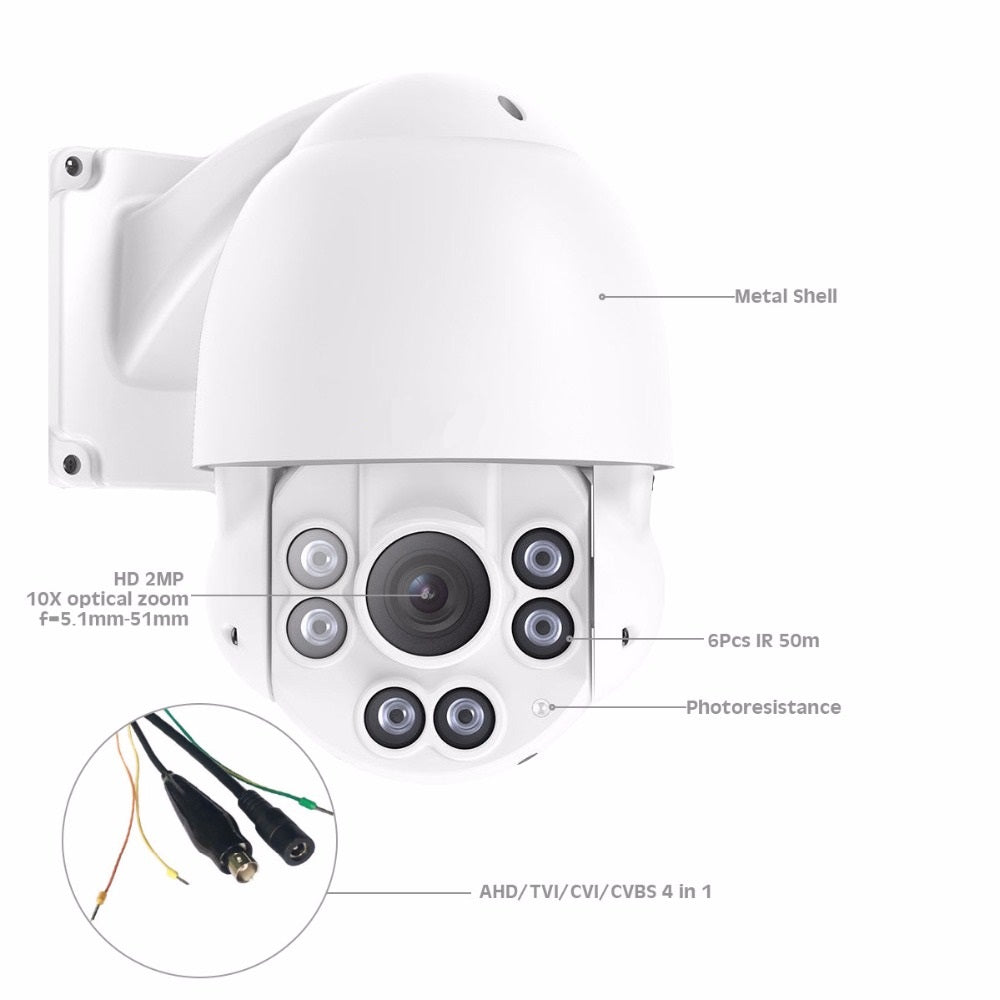

Sensor; 1/3'' Sony 323 CMOS
Effective pixels; 1080P 1920(H)X1080(V)
Total pixels; 2.0MP
Lens; 10X f=5.1mm~51mm
Iris ; F1.2~F1.6
Min. illumination Color: 0.5Lux \ B/W: 0.05Lux
BLC ; Support
WB; Indoor/Outdoor/Auto/Manual
D/N IR-CUT
S/N Ratio ≥50dB
WDR DWDR

Dome
DSP NVP2441
Horizontal Rotation Speed 0.1°-60°/s
Horizontal Rotation Range 360°
Tilt Rotation Speed 0.1°-45°/s
Tilt Rotation Range 93º
Auto Flip Horizontal 180°, Vertical 93°
Ratio Speed Support
Preset Points 220
Go to Preset Speed 1-9 grades setting available
360° Scan User programmable
A-B Scan User programmable
A-B Scan Speed 1-9 grades setting available
Dwell Preset 1-60s interval available
Guard Tours 3 groups
Guard Points Max.16 points, dwell time user selectable
OSD Menu Chinese,English
PWR on Action Memory/Pattern 1/Tour 1/360 scan/AB scan/Preset 1-8/None
Signal Transfer AHD/CVI/TVI/CVBS Selectable
Park Time 1-60mins setting available
Pan and Tilt position display Support
Baud Rate 1200/2400/4800/9600bps
Communication RS485 /Coaxical cable
Operating Temperature Indoor: 0°~ +40° Outdoor: -40°~ +60°
Operating Humidity ≤95% Non Condensing
Power Supply DC12V 3A
Power Consumption ≤5W
Lightning Protection Transient voltage 6000V

IR pamameters
Auto control IR LED PWM
LEDs Array 42Mil
IR distance Up to 50 meters
IR illumination on 1-15 grades selectable

Packing list:
1 x 4.5Inch Mini AHD PTZ Dome Camera
1 x User Manual
1 x Power adapter
1 x Camera Bracket(Standard Wall)
