Description

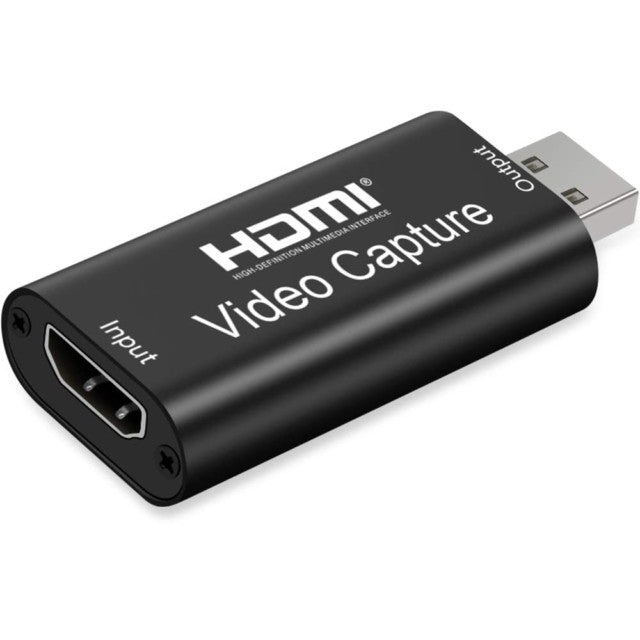

This USB 2.0 capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.
- Support maximum input resolution up to 4K;
- Support maximum output resolution up to 1080P;
- Support 8/10/12 bit color depth;
- When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution);
- Support most acquisition software, such as VLC, OBS, Amcap, etc .;
- Support Windows, Android and compatible with MacOS;
- Comply with USB video UVC specifications;
- Conforms to USB audio UAC specifications;
- No external power supply is required, so it is compact and easy to carry.
Specification:
- HDMI Resolution: Max input can support 3840×2160@30Hz / 4K
- Video Output Resolution: Max output can be 1920×1080@30Hz
- Video Input Format: 8 / 10 / 12-bit Deep Color
- Video Output Mode: YUV / JPEG
- Support Audio Format: L-PCM
- Support AWG26 HDMI Standard Cable: input ≤15 meters, AWG26 HDMI standard cable.
- Maximum Working Current: 0.4A / 5VDC
- Operating temperature range: (-10 to + 55 ℃)
- Dimension (L x W x H): 64×28×13 (mm)
- Weight: 21.4g
Package Includes
- 1 x USB Capture
