FEATURES

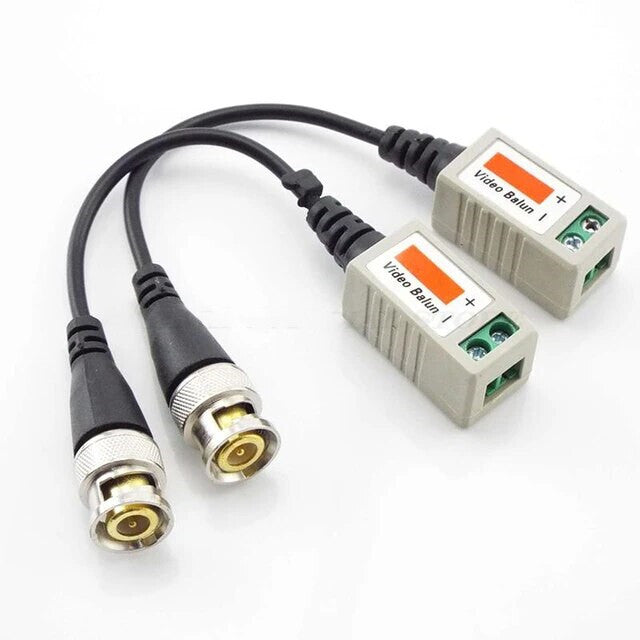

This BNC video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective Unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported. It is compatiable with all HD-TVI, HD-CVI and AHD analogue camera.
The BVB4201PLHD has a mini-coax pigtail lead which allows quick mounting onto fixed cameras and in-camera mounting in most dome cameras. Push-pin terminal block allows tool-less connection of UTP cable output. Used in Pairs, the BVB4201PLHD eliminates costly and bulky coaxial cable.
The superior interference rejection and low emissions of the BVB4201PLHD allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. It has Buit-in surge suppressor to protect video equipment against damaging voltage spikes.
FEATURES
- Real-time transmission over UTP cat 5e/6
- No power required
- Compatible with NTSC, PAL & SECAM video format
- Compatible with all HD-TVI, HD-CVI, AHD & CVBS analog cameras
- HD-CVI 720P: 440m, 1080P: 220m over UTP cat5e/6
- HD-TVI 720P: 190m, 1080P: 190m over UTP cat5e/ 6
- AHD 720P: 300m, 960P: 240m, 1080P: 220m over UPT cat5e/ 6
- BNC plug with extended 150mm mini-coal pigtail
- Reliable tool-less UTP push-pin or screw terminal block
- Built-in TVS (Transient Voltage Suppressor) for surge protection
- Wave Filter Design, Anti-Static Design
- Lightning protection design Grade: III
- 60 dB crosstalk and noise immunity
- Exceptional interference rejection
- ABS engineering plastic housing
APPLICATION
- Security monitoring system
- Multimedia network teaching system
- Medical monitoring display system
- Industrial Automation control system
- Banking, securities, financial information display system
- Remote network server monitoring
- Department store security
- Casino security
- Hospitals Airport and banks
- School/ campus
