License Plate Reversing Camera

  • $2500

Image Device:1/3 inch color CMOS
TV system:PAL/.NTSC
Effective pixels: 640 x 596 Pixels

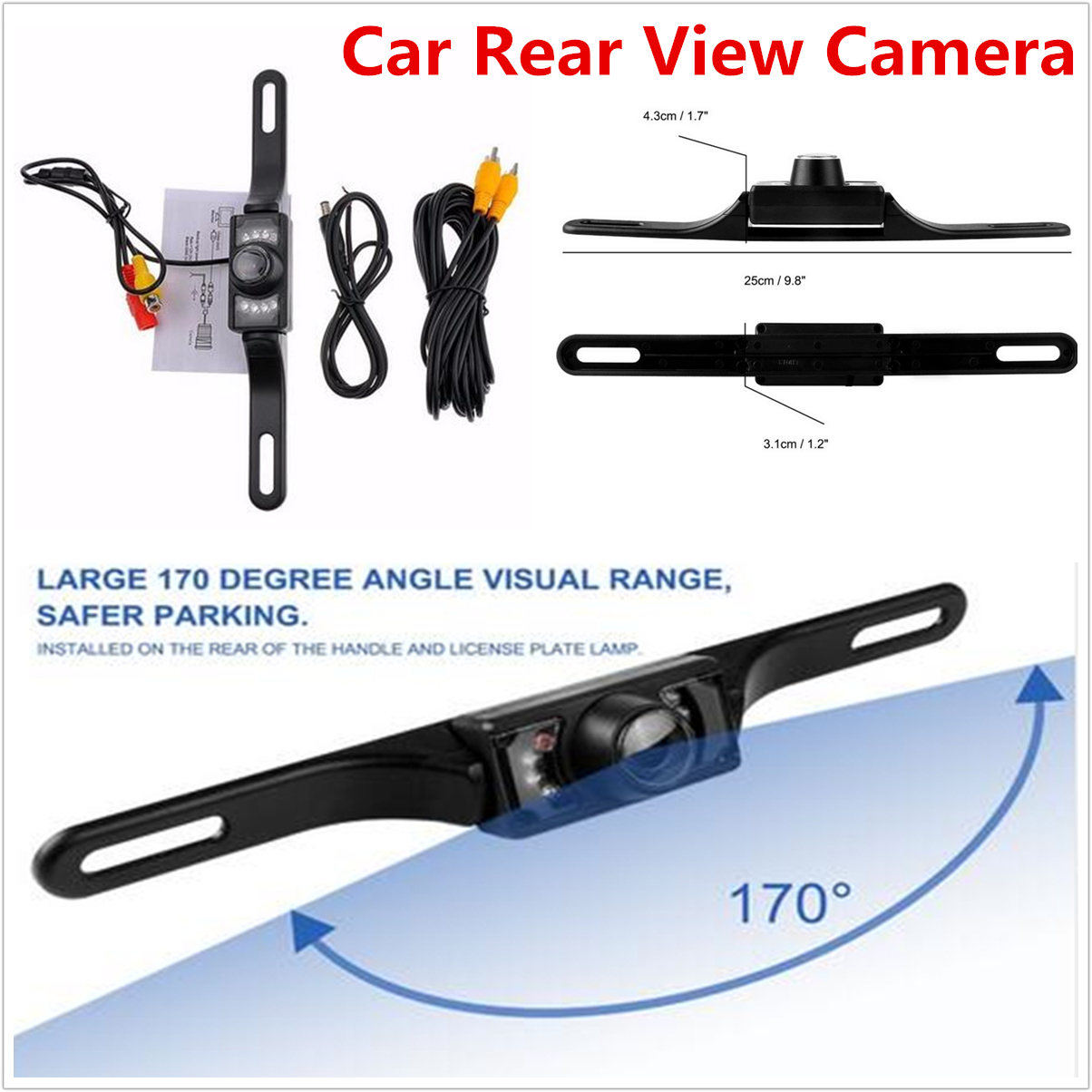

Lens angle: 170 ° / 135 °
Sensing area:4.08 x 3.12mm
Imaging Device: OV7950
Resolution:420TV lines
Electronic Shutter:1/60-1/20000 seconds
Waterproof grade: IP67 / 68
Minimum illumination: 0.1 Lux / F = 1.2 (0 Lux with IR on)
Gamma factor: 0.45
White balance: auto
Scanning System: 2: 1interlace
Video output:RCA CONNECTOR, 1.0VP-P, 75ohm
Current Consumption:≤150mA
Power supply:DC 12V
Working Temperature:-20°C - 75°C, RH95%Max
Storage temperature:-40°C - 85°C, RH95% Max.
Video cable length:6m Aprox. (19 Feet)
Power supply cable length:1.2M Aprox. (4 Feet)

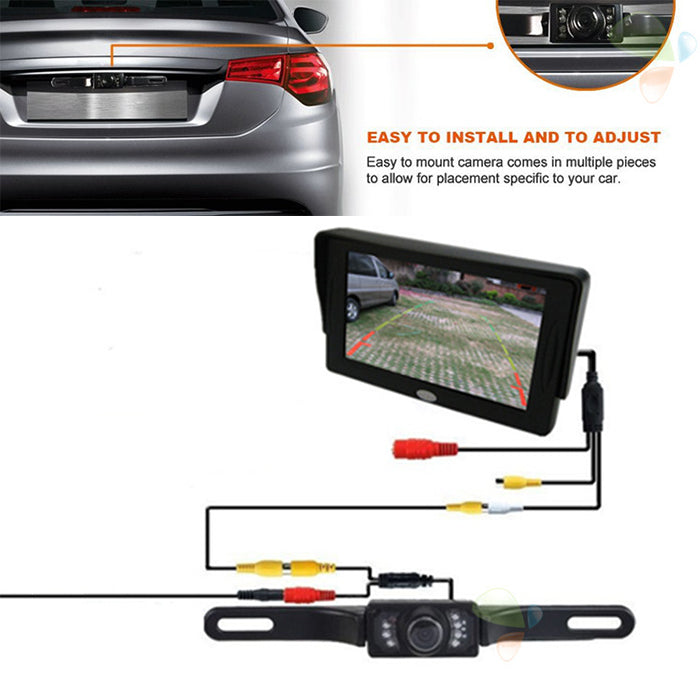

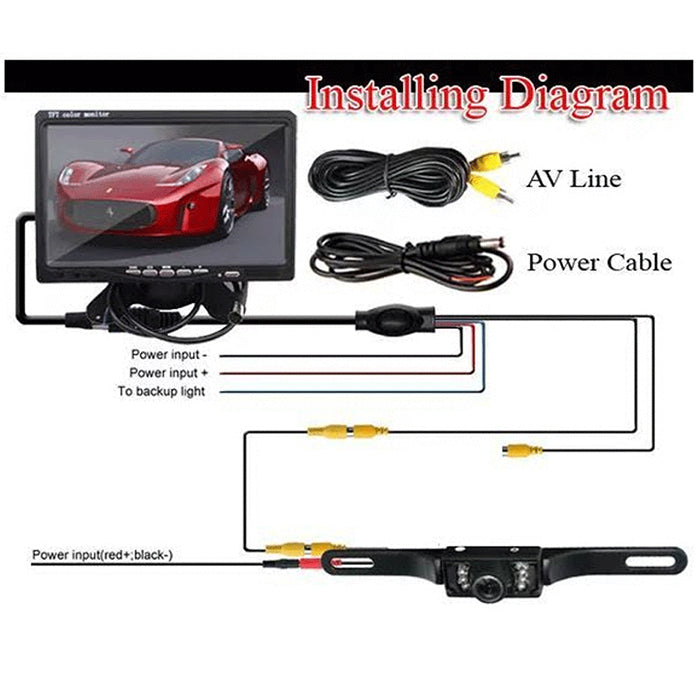

Easy Installation:
1. Mount the camera to your car's license plate area, back window, or any other suitable place
2. Adjust the lens of the camera to its best position.
3. Connect power wire (red and black) to your vehicle DC 12V power system.
4. Connect the video output (yellow wire) of the camera to the display in your vehicle.

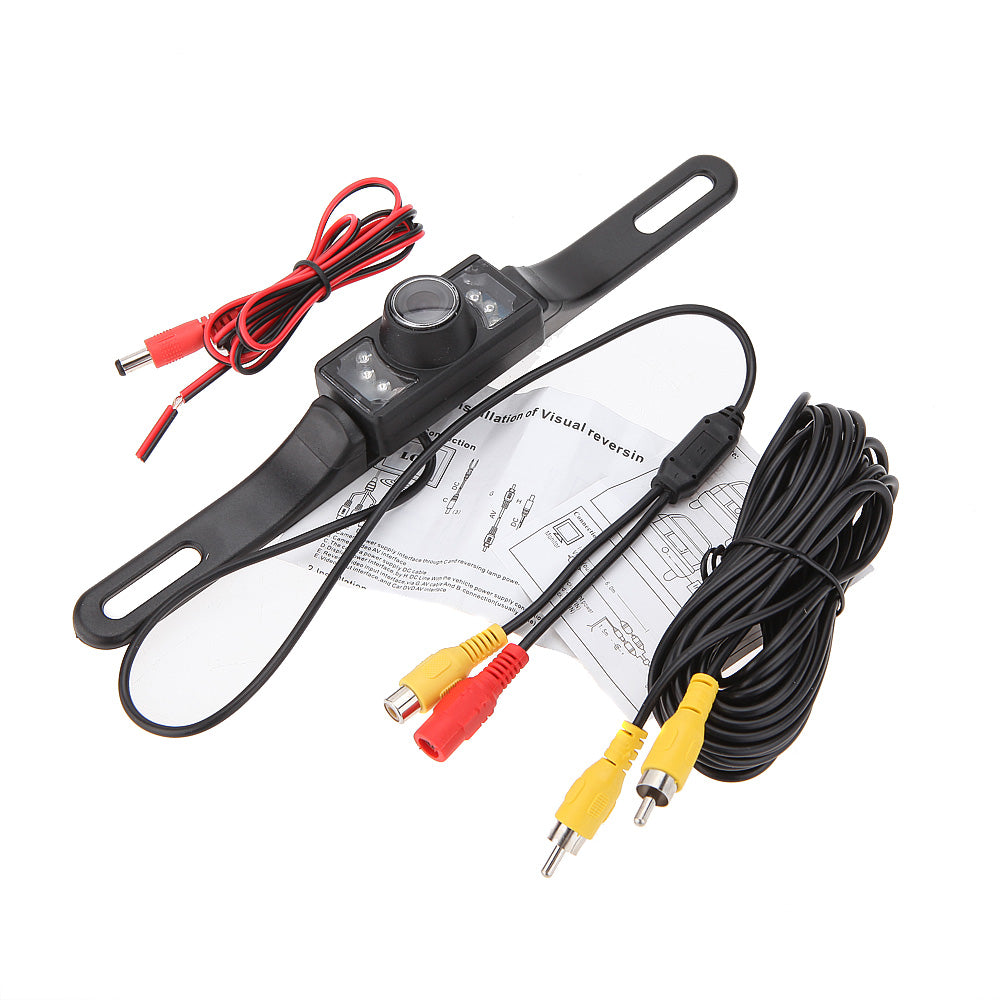

Package Included:
1 x Car Rear View Backup Camera
1 x Power Cable
1 x AV Cable (19ft.)
1 x User Manual
