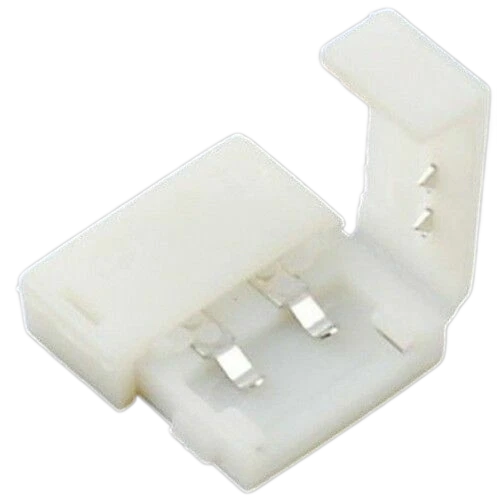

Solderless Intersection Joiner for LED Strips - 10mm
This connector is to be used for connecting single or RGB 5050 LED strips to each other, by applying each ends to the correct poles marked on the strips. Slide the strip end with the copper lanes under the metal clips within the clamp head, assuring the strip slides into the recess on the sides internally. Once in place, clamp the head shut.
Note: Silicone coating will need to be removed from the end for weatherproof/waterproof strips.
Note: Please assert attention to polarities of your circuit
Specifications
Suitable Voltage: 5V/12V
Maximum Current: 5A
No. of Poles/Pins: 2 or 4
Suit for 5050 Strip Width: 10mm
Package includes：
1x LED Strip adapter ( As your Option)
1x LED Strip adapter ( As your Option)
